The Timer Module

1Lab objectives

• Understanding the role of the prescaler and computing the counting frequency
• Configuring CTC mode to generate a precise time base
• Using the compare-match interrupt for periodic execution
• Generating PWM signals and controlling the duty cycle
• Replacing delay() with non-blocking timing

2Materials needed

• 1 Arduino Uno
• 1 Breadboard
• 2 LEDs + 220 Ω resistors
• 1 10 kΩ potentiometer
• 1 Passive buzzer (optional)
• 6 Jumper wires

3Theoretical background

How it works

A timer is a counter that increases by 1 with every clock pulse it receives. When it reaches its maximum value (255 for 8 bits, 65,535 for 16 bits), it resets and sets an overflow flag. Being implemented in hardware, it counts in parallel with program execution.

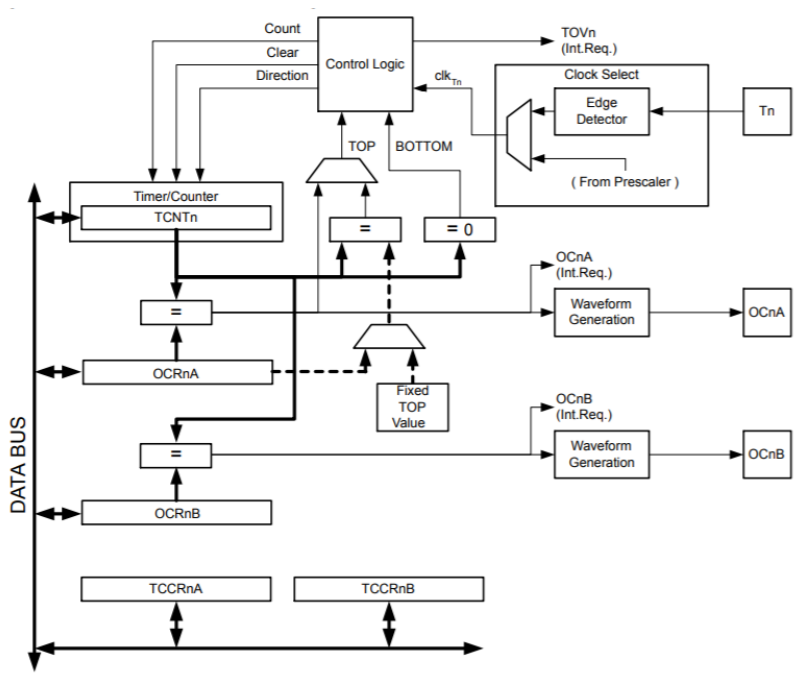

Timers available on the ATmega328P

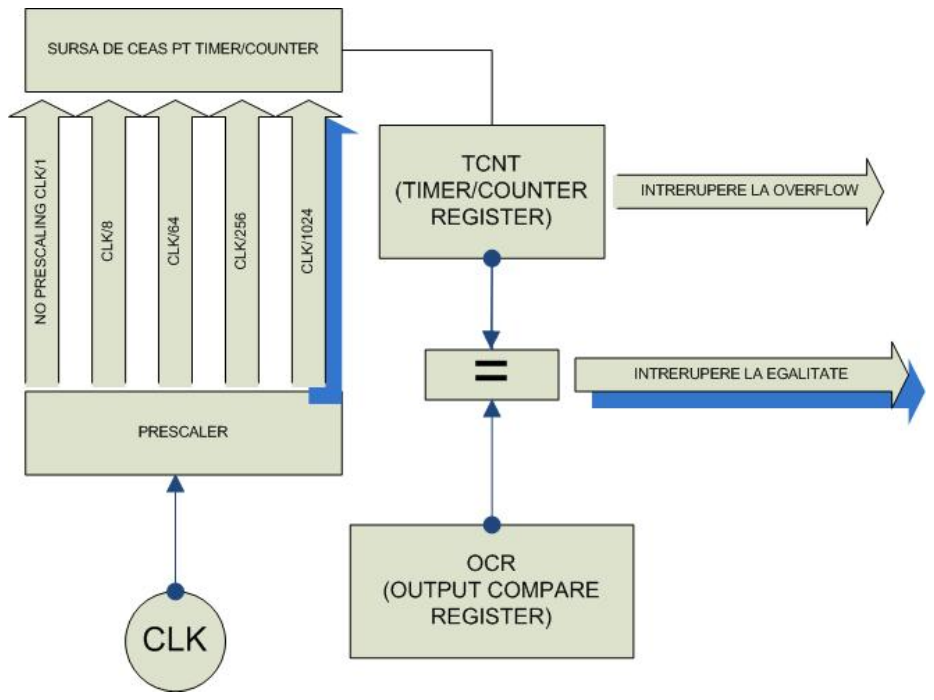

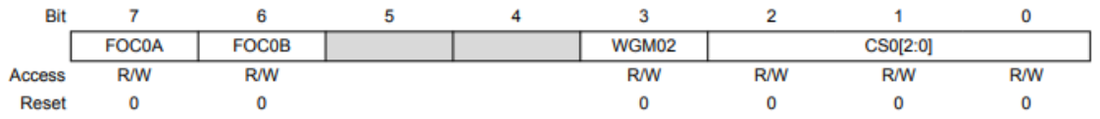

The prescaler

The 16 MHz clock is too fast for long intervals: a 16-bit timer would fill up in just 4.1 ms. The prescaler divides the frequency before it reaches the counter:

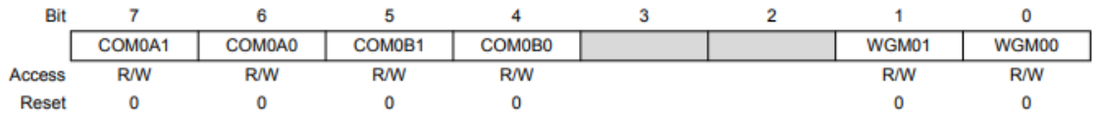

Operating modes

4Interactive timer calculator

Change the parameters and watch how the period and frequency change. The chart shows the counter climbing to the compare value and the resulting signal at the pin.

5Generating a PWM signal

PWM (Pulse Width Modulation) produces a variable average voltage by switching rapidly between 0 and 5 V. The ratio between the "on" time and the total period is called the duty cycle. An LED driven this way appears to change brightness, and a motor changes speed.

PWM at the register level - what analogWrite() does

The analogWrite() function hides the configuration of three registers. Written explicitly, the same operation looks like this - and becomes fully controllable: you can choose the frequency, resolution, and polarity, things impossible through the library.

void pwmInit() {
  DDRB |= (1 << PB1);              // pin 9 (OC1A) as output

  // COM1A1 = 1, COM1A0 = 0  -> non-inverted output: HIGH at start, LOW at compare
  TCCR1A |= (1 << COM1A1);
  TCCR1A &= ~(1 << COM1A0);

  // WGM13:WGM10 = 0101  -> Fast PWM, 8-bit (TOP = 255)
  TCCR1A |=  (1 << WGM10);
  TCCR1A &= ~(1 << WGM11);
  TCCR1B |=  (1 << WGM12);
  TCCR1B &= ~(1 << WGM13);

  // prescaler 64 -> f_PWM = 16 MHz / (64 * 256) = 976 Hz
  TCCR1B &= ~((1 << CS12) | (1 << CS11) | (1 << CS10));   // clear the field
  TCCR1B |=   (1 << CS11) | (1 << CS10);                   // write 011
}

void pwmSet(uint8_t duty) {
  OCR1A = duty;                    // 0 = always off, 255 = almost always on
}

void setup() {
  pwmInit();
  pwmSet(128);                     // 50% - equivalent to analogWrite(9, 128)
}

void loop() { }

Porting a timer configuration

6Source code

A 1-second time base in CTC mode

volatile bool secondElapsed = false;

ISR(TIMER1_COMPA_vect) {      // runs exactly once every second
  secondElapsed = true;
  PORTB ^= (1 << PB5);        // toggle the LED on pin 13
}

void setup() {
  DDRB |= (1 << PB5);

  cli();                      // stop interrupts while configuring
  TCCR1A = 0;                 // clear the registers
  TCCR1B = 0;
  TCNT1  = 0;                 // reset the counter

  OCR1A = 62499;              // (16,000,000 / 256) - 1 = 1 second
  TCCR1B |= (1 << WGM12);     // CTC mode
  TCCR1B |= (1 << CS12);      // prescaler 256
  TIMSK1 |= (1 << OCIE1A);    // enable the compare interrupt
  sei();                      // re-enable interrupts

  DDRB |= (1 << PB4);         // pin 12: witness for the main loop
}

void loop() {
  if (secondElapsed) {
    secondElapsed = false;
    PORTB ^= (1 << PB4);      // proof that the loop received the event
  }
}

Non-blocking timing - the alternative to delay()

delay() stops the program completely. With millis() you can run several activities with different periods, in parallel:

const uint8_t LED_1 = 8, LED_2 = 9;
unsigned long last1 = 0, last2 = 0;
const unsigned long PERIOD_1 = 250;   // ms
const unsigned long PERIOD_2 = 1000;  // ms

void setup() {
  pinMode(LED_1, OUTPUT);
  pinMode(LED_2, OUTPUT);
}

void loop() {
  unsigned long now = millis();

  if (now - last1 >= PERIOD_1) {
    last1 = now;
    digitalWrite(LED_1, !digitalRead(LED_1));
  }

  if (now - last2 >= PERIOD_2) {
    last2 = now;
    digitalWrite(LED_2, !digitalRead(LED_2));
  }

  // the loop stays free for other tasks
}

PWM brightness control

Here the duty cycle is driven directly from the program, through a ramp. In the fifth lab you will replace it with the value read from a potentiometer, through the analog-to-digital converter.

const uint8_t LED_PIN = 9;    // PWM pin (Timer1)

void setup() {
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // ramps up: the LED fades in smoothly
  for (uint16_t duty = 0; duty <= 255; duty += 5) {
    analogWrite(LED_PIN, duty);
    delay(25);
  }

  // ramps down: the LED fades out smoothly
  for (uint16_t duty = 255; duty > 0; duty -= 5) {
    analogWrite(LED_PIN, duty);
    delay(25);
  }
}

7Interactive circuit

A timer is a counter that runs on its own. The circuits below show you both of its uses: generating a PWM signal (where you can see the wave and the duty cycle) and measuring an exact interval in CTC mode. Change the prescaler in the registers and watch how the frequency changes.

#include <avr/io.h>
#include <util/delay.h>

/* OCR1A decides how much of the period the output stays at 1.
   OCR1A = 0   -> LED off;  OCR1A = 255 -> LED at full brightness. */

int main(void)
{
    DDRB |= (1 << PB1);        // pin 9 = OC1A, output

    /* Fast PWM, 8-bit, TOP = 255, non-inverted output on OC1A */
    TCCR1A = (1 << COM1A1) | (1 << WGM10);
    TCCR1B = (1 << WGM12)  | (1 << CS11);   // prescaler 8

    unsigned int d;

    while (1) {
        for (d = 0; d <= 255; d += 5) {     // ramps up
            OCR1A = d;
            _delay_ms(25);
        }
        for (d = 255; d > 0; d -= 5) {      // ramps down
            OCR1A = d;
            _delay_ms(25);
        }
    }
}

#include <avr/io.h>
#include <avr/interrupt.h>

/* Formula:  OCR1A = F_CPU / (prescaler * desired_frequency) - 1
   At 16 MHz, prescaler 1024, and one toggle per second:
       OCR1A = 16000000 / (1024 * 1) - 1 = 15624              */

ISR(TIMER1_COMPA_vect)
{
    PORTB ^= (1 << PB5);
}

int main(void)
{
    DDRB |= (1 << PB5);

    TCCR1A = 0;
    TCCR1B = (1 << WGM12) | (1 << CS12) | (1 << CS10);   // CTC, prescaler 1024
    OCR1A  = 15624;
    TIMSK1 = (1 << OCIE1A);
    sei();

    /* Exercise: change OCR1A so that the LED toggles
       every 250 ms. Calculate the value, do not guess it.
       Check it on the oscilloscope: at 4x speed, one full
       period must last 500 ms.                             */

    while (1) { }
}

8Work tasks

• Configure Timer1 in CTC mode to generate an interrupt every second and check the accuracy against a stopwatch over 60 seconds.
• Calculate and check the OCR1A values for periods of 0.5 s, 2 s, and 5 s. What happens at 5 s with prescaler 256?
• Write a program that blinks two LEDs with different periods (250 ms and 1 s), without using delay().
• Drive an LED's brightness through PWM, with the duty cycle set by a potentiometer.
• Measure the PWM signal's frequency on pin 9 and compare it with the theoretical value of 490 Hz.
• Create a "breathing" effect: the LED's brightness rises and falls smoothly, continuously.

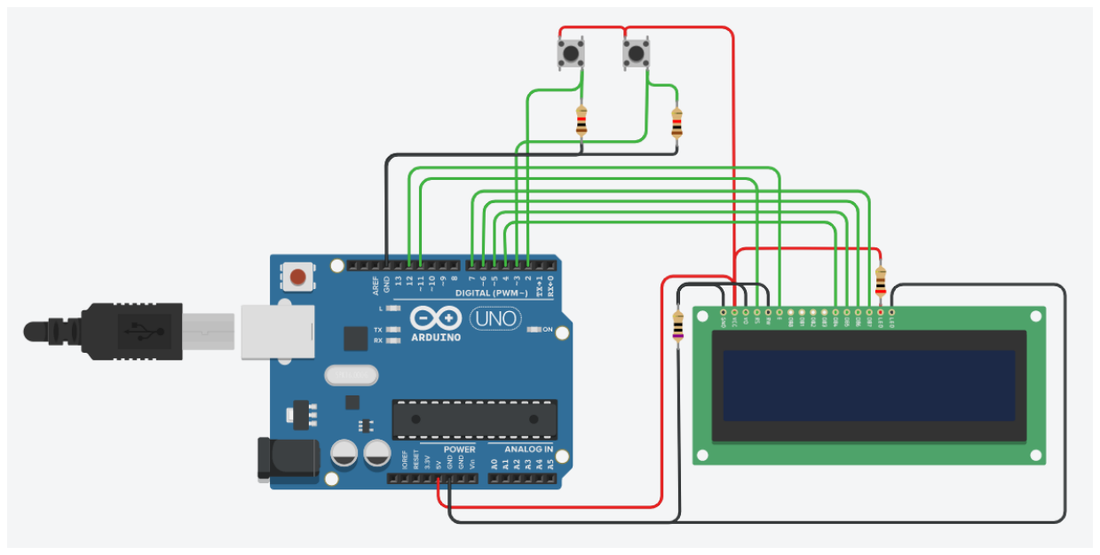

9Extended application

10Review questions

11Resources
